Non-Flooded, Flooded Model

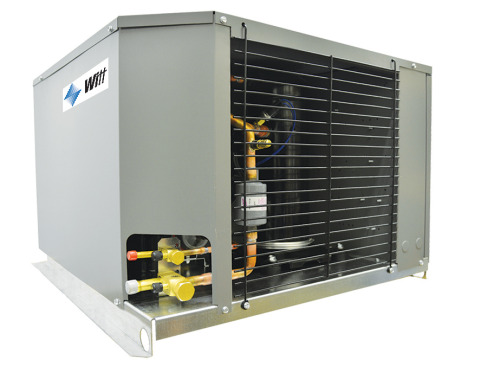

Witt’s Next-Gen W-Series Air Cooled Condensing Units provide a winning combination of high quality, increased flexibility and efficiency for lower long-term operating costs. These versatile units are workhorses and can be used with the Next-Gen All-Temp Low Profile Unit Cooler to create a complete refrigeration solution for small to medium walk-ins.
A key feature is the integral subcooling circuit that allows saturated liquid to flow from the receiver to the condenser where refrigerant is subcooled by ambient air—providing an average of 3° to 5°F of subcooling for higher efficiency and excellent operating stability. The units are designed to utilize R404A or other low global warming (GWP) refrigerants R407A, R407C and R448A/R449A and include a host of standard features and optional components.
Standard Features- Integral Liquid Subcooling Circuit provides subcooled liquid to the expansion device
- Quick access to shut-off valves from exterior
- Low-cost Hermetic or quiet and efficient Scroll compressors available in ½ to 6 HP
- Extended range medium or low temperature models with or without flooded head pressure control
- All-weather - Galvanized steel painted housing
- Generously sized high efficiency condenser, enhanced copper tubes/aluminum fins
- Liquid line kit with filter/drier and sight glass with moisture indicator
- Suction filter
- Oversized receiver
- Adjustable high/low pressure control
- Suction Accumulator
- Oil separator (may not be available with mounted accumulator)
- Thru-the-door fused disconnect for cabinet sizes FM2 through FM4
- External fused or non-fused disconnect - loose or mounted
- Heated and insulated receiver
Next-Gen .5 to 6 HP Submittal Form
SAMPLE OF OPTIONS
REFRIGERATION PRODUCTS
Condensing Units - Air Cooled
NEXT-GEN W-SERIES 1/2 TO 6 HP
- Click Image to View
-
KEY FEATURES
- Integral Liquid Subcooling Circuit provides subcooled liquid to the expansion device
- Quick access to shut-off valves from exterior
- Low-cost Hermetic or quiet and efficient Scroll compressors available in ½ to 6 HP
- Extended range medium or low temperature models with or without flooded head pressure control
- All-weather - Galvanized steel painted housing
- Generously sized high efficiency condenser, enhanced copper tubes/aluminum fins
- Liquid line kit with filter/drier and sight glass with moisture indicator
- Suction filter
- Oversized receiver
- Adjustable high/low pressure control
- Suction Accumulator
- Oil separator (may not be available with mounted accumulator)
- Thru-the-door fused disconnect for cabinet sizes FM2 through FM4
- External fused or non-fused disconnect - loose or mounted
- Heated and insulated receiver
Next-Gen .5 to 6 HP Submittal Form
SAMPLE OF OPTIONS
NEXT-GEN W-SERIES 1/2 TO 6 HP
Non-Flooded, Flooded Model
Witt’s Next-Gen W-Series Air Cooled Condensing Units provide a winning combination of high quality, increased flexibility and efficiency for lower long-term operating costs. These versatile units are workhorses and can be used with the Next-Gen All-Temp Low Profile Unit Cooler to create a complete refrigeration solution for small to medium walk-ins.
A key feature is the integral subcooling circuit that allows saturated liquid to flow from the receiver to the condenser where refrigerant is subcooled by ambient air—providing an average of 3° to 5°F of subcooling for higher efficiency and excellent operating stability. The units are designed to utilize R404A or other low global warming (GWP) refrigerants R407A, R407C and R448A/R449A and include a host of standard features and optional components.
STANDARD FEATURES
Integral Liquid Subcooling Circuit provides subcooled liquid to the expansion device Quick access to shut-off valves from exterior Low-cost Hermetic or quiet and efficient Scroll compressors available in ½ to 6 HP Extended range medium or low temperature models with or without flooded head pressure control All-weather - Galvanized steel painted housing Generously sized high efficiency condenser, enhanced copper tubes/aluminum fins Liquid line kit with filter/drier and sight glass with moisture indicator
Suction filter Oversized receiver Adjustable high/low pressure control Suction Accumulator Oil separator (may not be available with mounted accumulator) Thru-the-door fused disconnect for cabinet sizes FM2 through FM4 External fused or non-fused disconnect - loose or mounted Heated and insulated receiver
Next-Gen .5 to 6 HP Submittal Form
SAMPLE OF OPTIONS
